Tutorial 2: Single Application and Substance

Motivation

In this tutorial, we examine ABC Country, a hypothetical country that we can use to explore Kigali Sim's functionality. Specifically, we will make a first HFC consumption model by using volume-based inputs. This approach helps us understand the relationship between populations and refrigerant consumption while working with initial charges, retirement rates, and servicing patterns. All of these parameters will work together to project consumption trends over time.

Let's start this analysis with domestic refrigeration using HFC-134a. We will use this to demonstrate how to model a single application with basic equipment data. This is the simplest simulation possible within the tool.

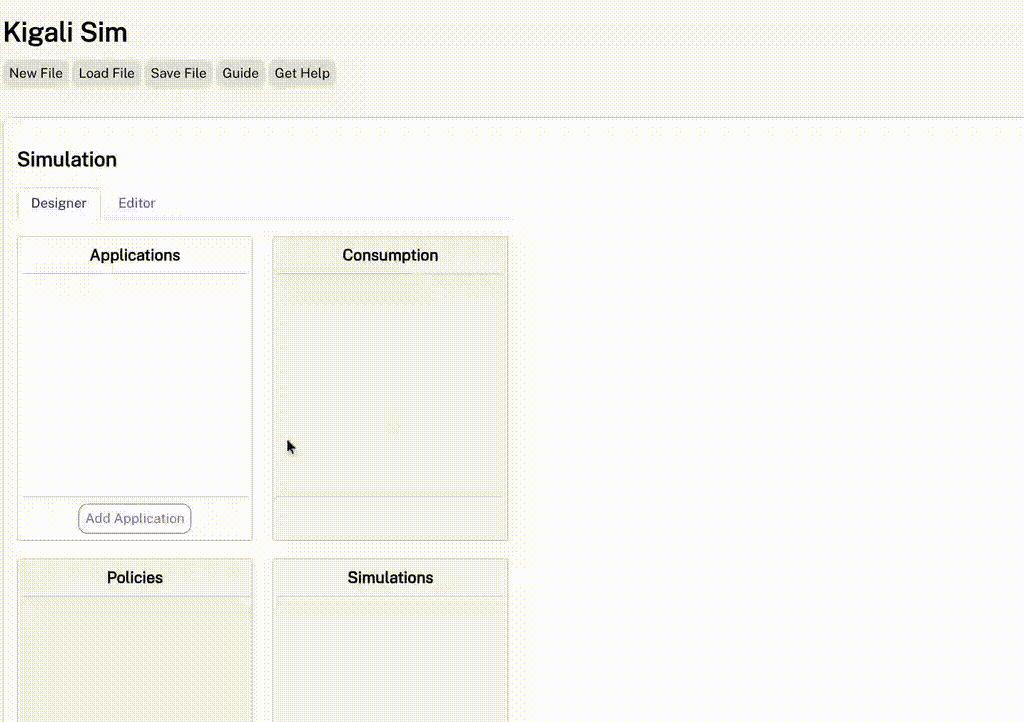

Setting Up Your First Application

Let's start by creating a new simulation for ABC:

• Click Add Application and enter "Domestic Refrigeration" without quotes.
• Leave Subapplication empty for now
• Click Finish

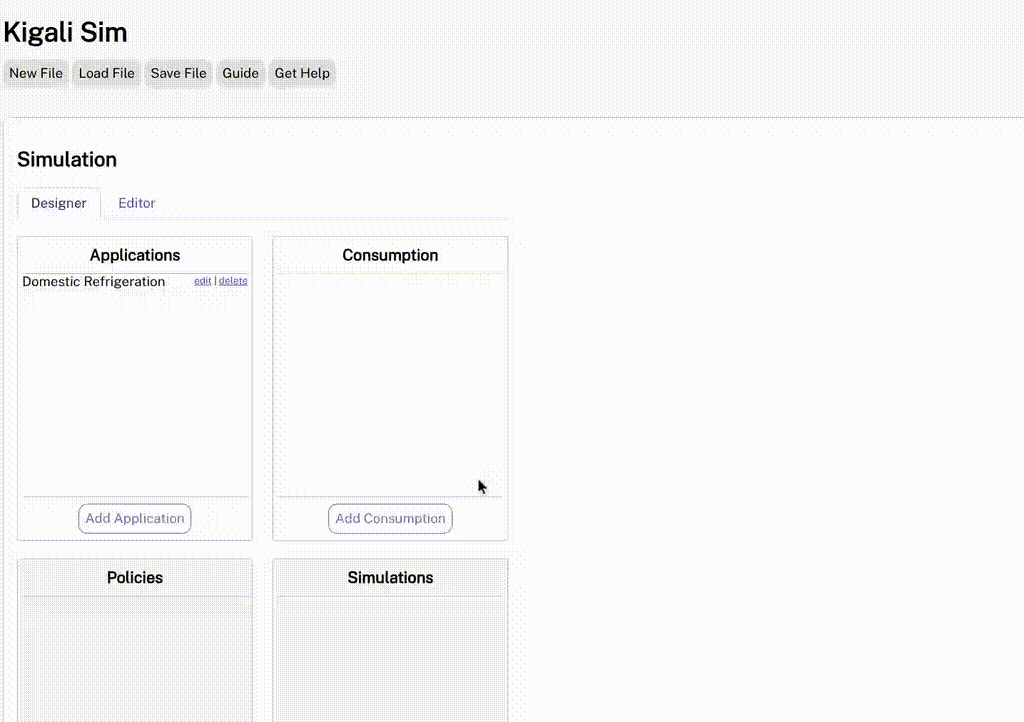

You won't see results yet because we haven't added any substances or equipment data.

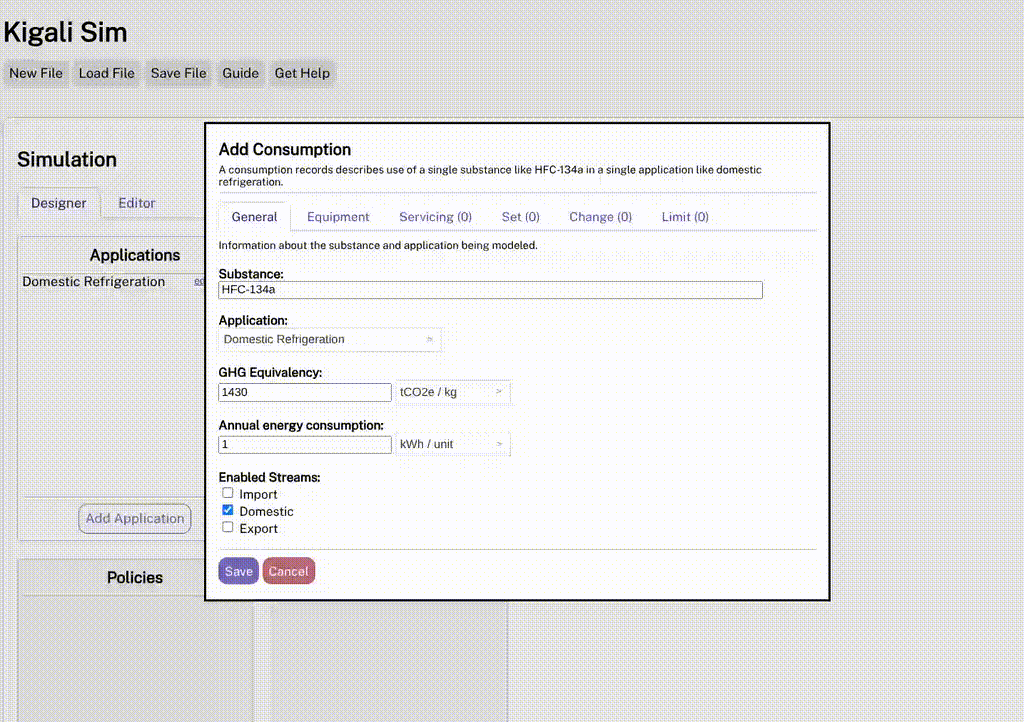

Adding HFC-134a Substance

Next, let's add our refrigerant substance:

• Click Add Consumption.
• Enter HFC-134a for the substance name.
• Set the Global Warming Potential to 1430 kgCO2e/kg. This means 1430 kg of CO2 equivalent per kilogram of substance. You can also use other units like 1.43 tCO2e/kg.
• Leave energy consumption at 1 kWh/unit for now.
• Enable the domestic manufacture checkbox (domestic production stream).
• Leave import and export unchecked as ABC Country doesn't trade HFC-134a for domestic refrigeration.

Don't click save yet! We need to configure equipment properties first.

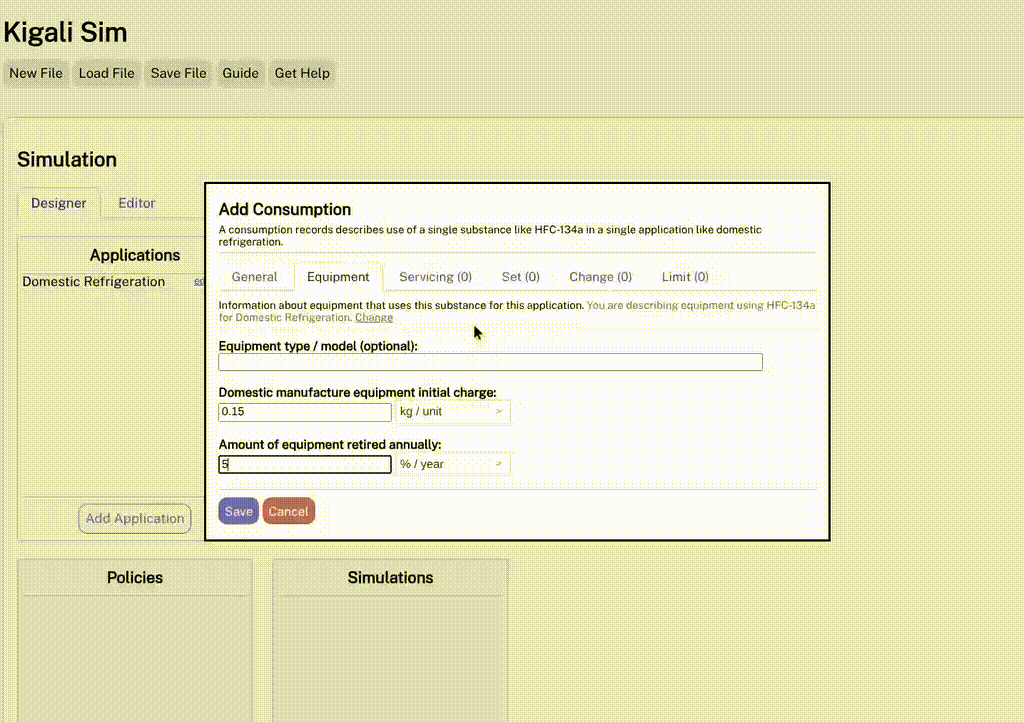

Equipment Properties

Now let's define the equipment characteristics that drive HFC consumption:

• Go to the Equipment tab
• Leave equipment type/model empty for now
• Enter 0.15 kg/unit for initial charge (refrigerant per new unit)
• Set annual retirement rate to 5% each year (corresponds to 20-year average equipment lifetime)
• Leave "Retirement reduces in-service equipment" checked. This is recommended for most simulations but a later tutorial will revisit this option.

The retirement rate is sometimes called the hazard rate or scrap rate in equipment lifecycle analysis. Kigali Sim, by default, assumes a constant hazard rate when you specify a percentage. However, this can be modified by using a non-percentage retirement amount if you need more complex retirement patterns.

These basic parameters are enough to start modeling, but we also will want to account for servicing existing equipment.

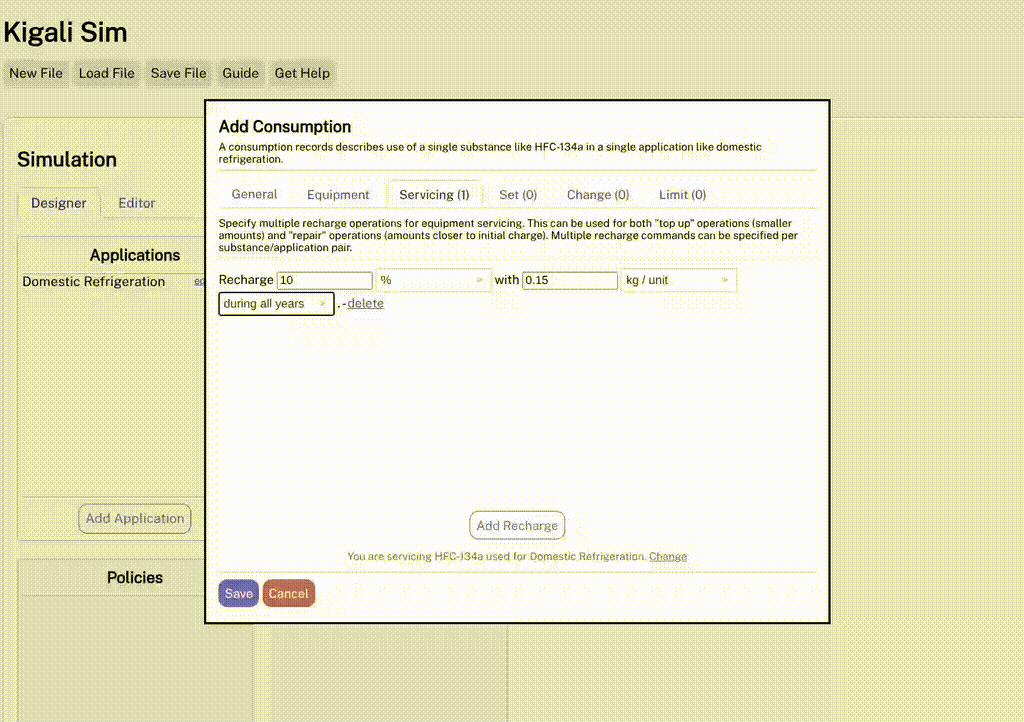

Servicing Configuration

Refrigerants are needed both for new equipment (initial charge) and maintenance of existing equipment:

• Go to the Servicing tab
• Click Add Recharge
• Specify that 10% of equipment is recharged each year on average
• Set recharge amount to 0.15 kg/unit as a top-up
• Specify that this happens in all years of the simulation

We're almost ready to run our first simulation! We just need initial conditions.

Initial Conditions

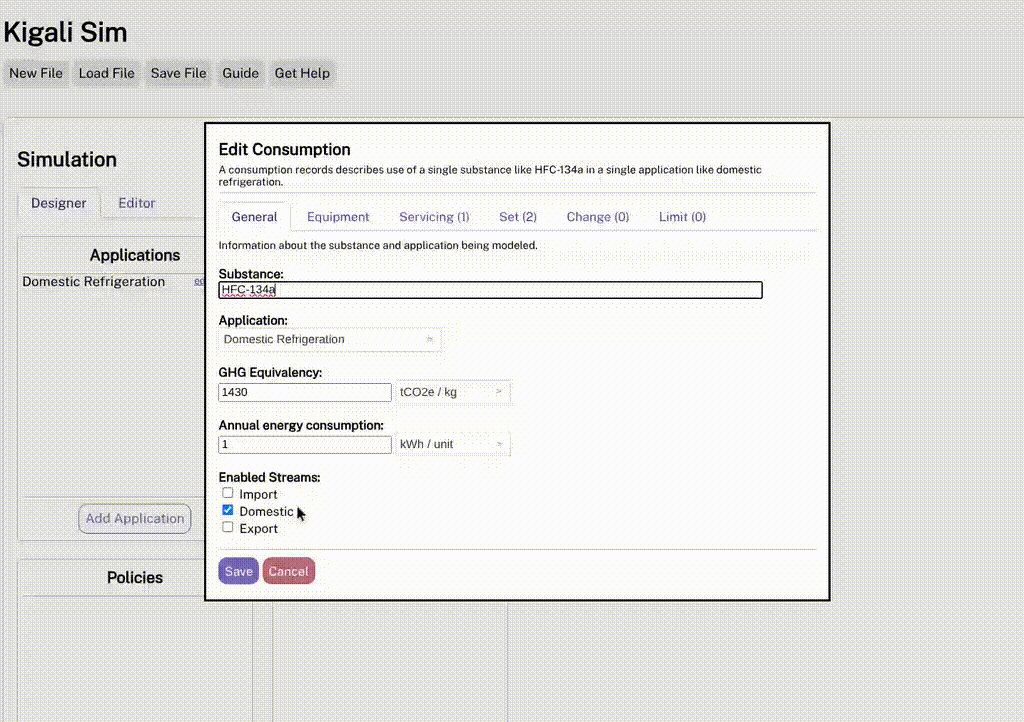

Head to the Set tab to specify ABC Country's starting conditions:

• Click Add Setpoint
• Set prior equipment to 1,000,000.0 units in year 2025
• Set domestic manufacture to 25 mt / yr in year 2025

This 25 mt/year gives us a good demonstrative curve showing how consumption patterns evolve. However, until we specify changes in later tutorials, this production rate will remain steady based on tonnage. It will be used both for initial charge and recharge.

Note that, below the setpoints, you'll see a "Default sales assumption in a new year" dropdown. For this tutorial (and most simulations), leave this set to "Continue from last year (recommended)", which is the default. This setting controls how sales carry over from one year to the next. The default option maintains existing sales patterns, allowing the model to automatically balance substance allocation between initial charge and recharge based on equipment population dynamics.

Running Your First Simulation

Now let's see our model in action. After clicking save for our consumption record, do the following:

• Click Add Simulation
• Create a "Business as Usual" simulation (call it BAU).
• Set no policies (we'll add those later).
• Indicate a duration from 2025 to 2035
• Click Finish

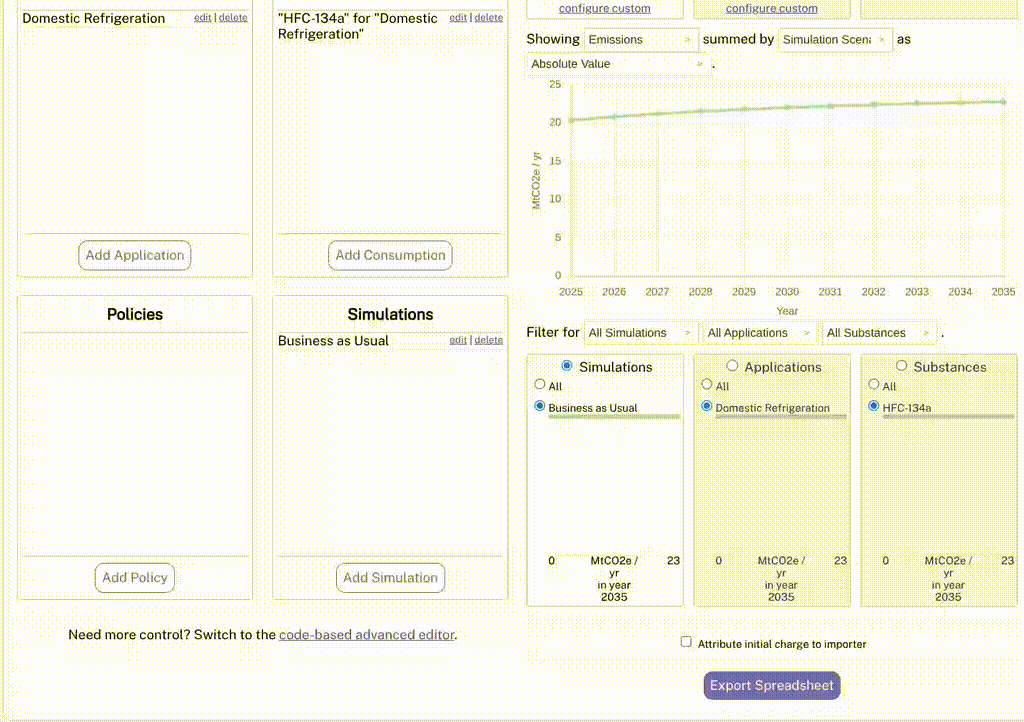

Interpreting Results

Let's examine what our model shows us.

• First, select the Consumption radio button and you'll see HFC-134a consumption steady at 25 mt/year, which the model automatically allocates between initial charge for new equipment and servicing existing equipment.
• Next, select Equipment to see that equipment population grows but the growth rate decreases over time. This happens because as the equipment population increases, more of the manufactured substance goes to recharge existing units, leaving less for new equipment growth.
• Finally, with Emissions selected, recharge emissions (substance lost during service) also grow but at a decreasing rate, reflecting the sub-linear equipment population growth.

We will add additional dynamics but this starts building an intuition for how Kigali Sim interpreted our very simple model.

Conclusion

You've successfully created ABC Country's first HFC consumption model! This basic simulation shows how 1 million existing refrigerators that, when combined with steady domestic production, create predictable consumption patterns. While we used simplified assumptions (uniform equipment characteristics, steady production), this foundation will flourish into much more sophisticated analysis as we add more information in. Specifically, we explored:

• Equipment-based consumption modeling: Understanding how equipment drives substance consumption.
• Initial charge vs. recharge: Distinguishing between new equipment needs and servicing requirements.
• Equipment lifecycles: How retirement rates affect long-term consumption patterns.
• Supply chain basics: Domestic manufacturing without imports.

For some readers, this may seem like a lot of data to specify. Still, don't forget that we can use some basic assumptions to begin our analysis and get a rough idea of a system. These rough estimates can give way to more detailed information as we gather it. This includes adding actual historical values. For other readers, this may seem too simplistic. However, we will grow sophistication in this case study over time as we add in new dynamics.

Note that we specified HFC-134a to be both domestically produced and consumed during this first tutorial. This simplifies our ability to reason about the results: we don't have to consider trade attribution rules yet. However, a later tutorial will consider trade and how to analyze results under treaty conventions.

Download the completed tutorial: tutorial_02.qta - this contains the complete single application and substance model

Next Steps

Tutorial 3 will expand our model to include multiple equipment applications and refrigerant substances across ABC Country's complete national inventory. You'll learn to model commercial refrigeration, air conditioning, and other sectors while comparing different refrigerants and their climate impacts - building toward a comprehensive national HFC profile.
